3202



Zone2 Ex Iec Iecex Zone2 Fmapprovedcus Zone2 UL List CCC UKCA CE Pr Rohs Guarantee

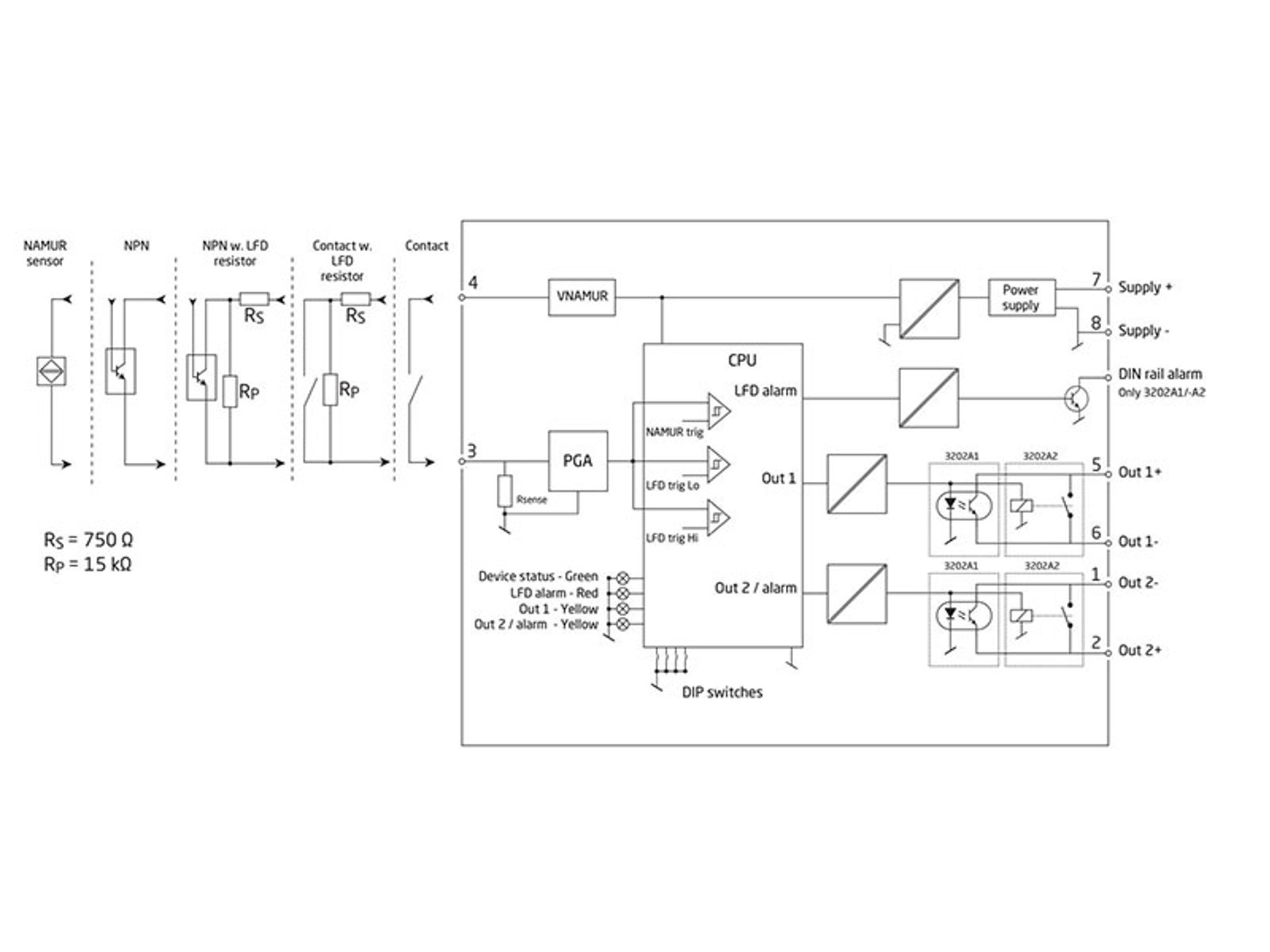

  1. Overview + -

  2. Technical details + -

  3. Accessories + -

Data sheet & Manuals


Data sheet

Manuals

Approvals & Certificates


ATEX certificate

IECEx certificate

UKEX certificate

UL certificate

CCC certificate

FM certificate

Supplementary documentation


EU Declaration of Conformity

UKCA Declaration of Conformity

EMC data

PR default configurations

Environmental Conditions

Operating temperature -25°C to +70°C
Storage temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 113 x 6.1 x 115 mm
Weight approx. 70 g (3202A1) / 80 g (3202A2)
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.5 mm2 / AWG 26...12 stranded wire
Screw terminal torque 0.5 Nm

Common specifications

Supply

Supply voltage 16.8...31.2 VDC
Max. power dissipation 0.65 W (3202A1) / 0.95 W (3202A2)
Max. required power ≤ 1.2 W

Isolation voltage

Isolation voltage, test / working 2.5 kVAC / 300 VAC (reinforced)

Auxiliary supplies

Sensor supply limitation 8.2 VDC, max. 8.2 mA @ 0 VDC

Input specifications

NAMUR input

NAMUR according to EN 60947-5-6
Trig level LOW < 1.2 mA
Trig level HIGH > 2.1 mA
Sensor supply 8.2 VDC

NPN and mechanical switch

Max. input frequency 5 kHz
Trig level LOW < 1.2 mA
Trig level HIGH > 2.1 mA
Max. input voltage 24 VDC

Output specifications

Relay output

Max. voltage 250 VAC / 200 VDC
Max. current 2 AAC
Max. AC power 100 VA
Max. DC current, resistive load ≤ 30 VDC 2 ADC
Max. DC current, resistive load > 30 VDC See manual for details
Max. switching frequency 20 Hz
Response time < 20 ms

NPN output

Max. voltage 30 VDC
Max. switching frequency 5 kHz
Min. pulse length > 0.1 ms
Max. voltage drop at 80 mA 2.5 VDC
Response time < 0.1 ms

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032

Approvals

ATEX KEMA 10ATEX0147 X
IECEx KEM 10.0068X
UKEX DEKRA 21UKEX0055X
c FM us FM17US0004X / FM17CA0003X
c UL us, UL 61010-1 E314307
CCC 2020322310003554
