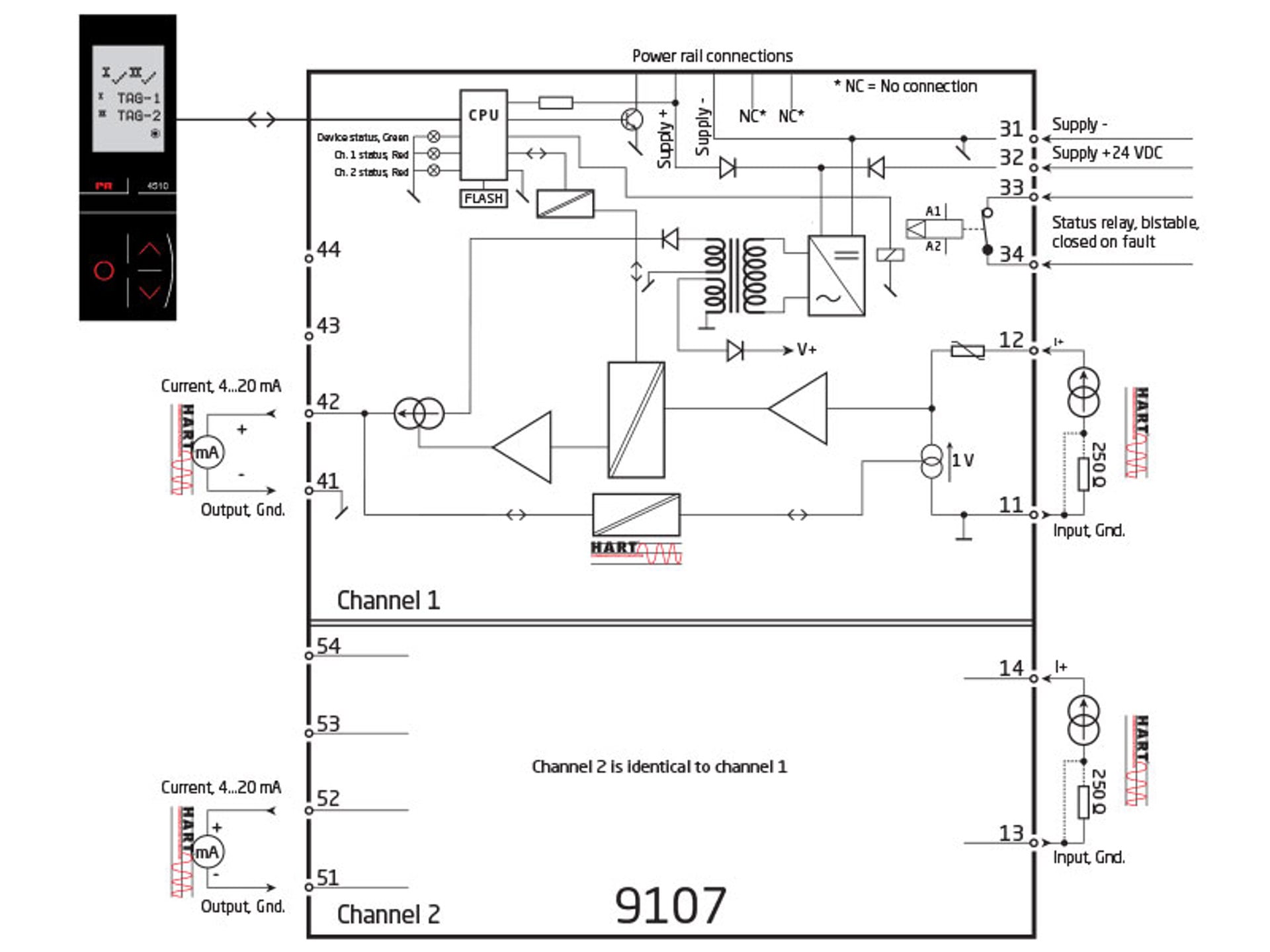

9107 Block 800X600px EN
9107A
9107A 800X600px
9107 Block 800X600px EN

HART transparent driver



9107A



  • 24 VDC supply via power rail or connectors
  • Fast response time
  • High active output load 725 Ohm / 20 mA
  • Output line fault detection via status relay
  • SIL2 certified via Full Assessment according to IEC 61508
Zone2 Ex Iec Iecex Zone2 Fmapprovedcus Zone2 UL List Inmetro Dekra CCC Kcs Mark SIL 2 DNV Classnk Eac Ex Mpa EAC UKCA CE Pr Rohs3

  1. Overview + -

  2. Technical details + -

  3. Accessories + -

  4. Order and delivery + -

  5. Why choose PR + -

Application

  • 9107A is a 1- or 2-channel isolated 1:1 driver.
  • Operation and drive control of I/P converters, valves and indicators.
  • Operation of HART devices is possible as the unit transmits HART communication signals bi-directionally.
  • 9107A can be mounted in the safe area or in zone 2 / Class I, Division 2, Groups A, B, C, D.
  • The PR 4500 displays the process value for each channel and can be used to define high and low limits for detection of loop current level. If these limits are exceeded, the status relay will activate.
  • Dual channel versions can be used for signal splitter applications - 1 in and 2 out.

Advanced features

  • The PR 4500 detachable displays and the green and red front LEDs indicate operation status for each channel.
  • A tag number can be defined for each channel.
  • Output line fault detection.
  • In the 1-channel version the status relay can be used as a simple limit switch.
  • Suitable for the use in systems up to Performance Level “d” according to ISO-13849.

Technical characteristics

  • High galvanic isolation of 2.6 kVAC.
  • High accuracy better than 0.1%.
  • Continuous check of vital stored data for safety reasons.

Mounting

  • The devices can be mounted vertically or horizontally without distance between neighbouring units.

Data sheet & Manuals

Data sheet
Manuals
Manuals in Russian
Manuals in Portuguese (Brazil)
Manuals in Korean
Safety manual (SIL)

Approvals & Certificates

ATEX certificate
IECEx certificate
UKEX certificate
FM certificate
INMETRO certificate
UL certificate
CCC certificate
KCs certificate
DNV marine certificate
ClassNK certificate
SIL certificate
EAC declaration
EAC LVD declaration
EAC Ex certificate
Metrology Pattern Approval (MPA), Russia

Supplementary documentation

EU Declaration of Conformity
UKCA Declaration of Conformity
Modbus configuration manual
EMC data
Assessment report
FMEDA report
ISO 13849 declaration
PR default configurations

Order form

Environmental Conditions

Operating temperature -20°C to +60°C
Storage temperature -20°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
Installation in Pollution degree 2 & meas. / overvoltage cat. II

Mechanical specifications

Dimensions (HxWxD) 109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ PR 4500 109 x 23.5 x 131 mm
Weight approx. 250 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13...2.08 mm2 AWG 26...14 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2...13.2 Hz ±1 mm
13.2...100 Hz ±0.7 g

Common specifications

Supply
Supply voltage 19.2...31.2 VDC
Fuse 1.25 A SB / 250 VAC
Max. required power ≤ 1.0 W / ≤ 1.8 W (1 ch. / 2 ch.)
Max. power dissipation, 1 / 2 ch. ≤ 1.0 W / ≤ 1.8 W

Isolation voltage
Test /working: Input to any 2.6 kVAC / 300 VAC reinforced isolation
Analog output to supply 2.6 kVAC / 300 VAC reinforced isolation
Status relay to supply 1.5 kVAC / 150 VAC reinforced isolation

Response time
Response time (0...90%, 100...10%) < 5 ms
Programming PR 4500 communication interfaces
Signal dynamics, input Analog signal chain
Signal dynamics, output Analog signal chain
HART bi-directional communication frequency range 0.5...7.5 kHz
Signal / noise ratio > 60 dB
Accuracy Better than 0.1% of sel. range
mA, absolute accuracy ≤ ±16 μA
mA, temperature coefficient ≤ ±1.6 μA / °C
Effect of supply voltage change on output (nom. 24 VDC) < ±10 μA
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span

Input specifications

Current input
Measurement range 3.5...23 mA
Sensor error detection: Loop break 4...20 mA < 1 mA
Input voltage drop, supplied unit < 2 V @ 23 mA
Input voltage drop, non-supplied unit < 4 V @ 23 mA

Output specifications

Current output
Signal range 3.5...23 mA
Load (@ current output) ≤ 725 Ω
Load stability ≤ 0.01% of span / 100 Ω
Current limit ≤ 28 mA

Status relay
Relay function N.C.
Programmable low setpoint 0...29.9 mA
Programmable high setpoint 0...29.9 mA
Hysteresis for setpoints 0.1 mA
Max. voltage 125 VAC / 110 VDC
Max. current 0.5 AAC / 0.3 ADC
Max. voltage - hazardous installation 32 VDC / 32 VAC
Max. current - hazardous installation 1 ADC / 0.5 AAC
of span = normal measurement range 4...20 mA

Observed authority requirements

EMC 2014/30/EU & UK SI 2016/1091
LVD 2014/35/EU & UK SI 2016/1101
ATEX 2014/34/EU & UK SI 2016/1107
RoHS 2011/65/EU & UK SI 2012/3032
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
EAC LVD TR-CU 004/2011

Approvals

ATEX DEKRA 11ATEX0247 X
IECEx DEK 11.0088X
UKEX DEKRA 21UKEX0173X
c FM us FM16US0465X / FM16CA0213X
INMETRO DEKRA 23.0004X
c UL us, UL 61010-1 E314307
c UL us, UL 913 E233311 (only 9107xx-U9)
CCC 2020322304003422
KCs 21_AV4BO_0172X (only 9107Ax-KCs)
EAC Ex RU C-DK.HA65.B.00355/19
DNV Marine TAA00000JD
ClassNK TA24034M
SIL SIL 2 certified & fully assessed acc. to IEC 61508
